Características Principales:
MOTHER BOARD PRIME B550M-K Zócalo AMD AM4 para procesadores de escritorio AMD Ryzen ™ 5000 Series / 4000 G-Series / 3000 Series, Chipset AMD B550, 4 x DIMM, máx. 128 GB, DDR4 4600 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3333 ( OC) / 3200/3000/2800/2666/2400/2133 MHz Memoria sin búfer * Procesadores AMD Ryzen TM 4000 G-Series, Gráfico 1 x D-Sub, 1 x DVI-D, 1 x HDMI 2.1 (4K @ 60HZ),Ranuras de expansión AMD Ryzen ™ 5000 Series / 3000 Series Desktop Procesadores, 1 x PCIe 4.0 x16 (modo x16), AMD Ryzen TM 4000 G-serie de los procesadores, 1 x PCIe 3.0 x16 (modo x16) AMD B550 chipset, 2 x PCIe 3.0 x1.Almacenamiento Total admite 2 ranuras M.2 y 4 puertos SATA de 6 Gb / s Procesadores de escritorio AMD Ryzen ™ Serie 5000 / Serie 3000: 1 x M.2_1 socket 3, con clave M, tipo 2242/2260/2280/22110 (Modos PCIE 4.0 x4 y SATA) dispositivos de almacenamiento compatibles con procesadores AMD Ryzen TM 4000 G-Series: 1 x M.2_1 socket 3, con tecla M, tipo 2242/2260/2280/22110 (PCIE 3.0 x4 y modos SATA) dispositivos de almacenamiento compatible con chipset AMD B550: 1 x M.2_2 socket 3, con M Key, tipo 2242/2260/2280 (modos PCIE 3.0 x4 y SATA) dispositivos de almacenamiento compatibles con 4 x SATA 6Gb / s puerto (s), Support Raid 0, 1 , 10, LAN Realtek RTL8111H Ethernet de 1 Gb ASUS LANGuard, Funciones de software exclusivo de ASUS, Sistema operativo Windows® 10 de 64 bits. microATX.
- CPUBuild in AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors *
* Refer to www.asus.com for CPU support list - ChipsetAMD B550
- Memoria3rd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). - Gráfica1 x D-Sub
1 x DVI-D
1 x HDMI 2.1(4K@60HZ)
*Graphics specifications may vary between CPU types. - Puertos de Expansión3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (x16 mode)
3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
2 x PCIe 3.0 x1 - AlmacenamientoTotal supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10 - LANRealtek RTL8111H 1Gb Ethernet
ASUS LANGuard - AudioRealtek ALC887 7.1 Surround Sound High Definition Audio CODEC *
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
– LED-illuminated design
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output. - Puertos USBRear USB Port ( Total 6 )
2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A) - Software FeaturesASUS Exclusive Software
Armoury Crate
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
– EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode - ASUS Special FeaturesASUS 5X PROTECTION III
– ASUS DIGI+ VRM
– ASUS LANGuard
– ASUS Overvoltage Protection
– ASUS SafeSlot Core
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design
ASUS Lighting Control - Puertos posteriores I/O1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
3 x Audio jack(s) - Internal I/O1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector - AccesoriosUser’s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x M.2 SSD screw package(s) - BIOS256 Mb Flash ROM, UEFI AMI BIOS
- ManejoWOL by PME, PXE
- Sistema operativoWindows® 10 64-bit
- Form FactormATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

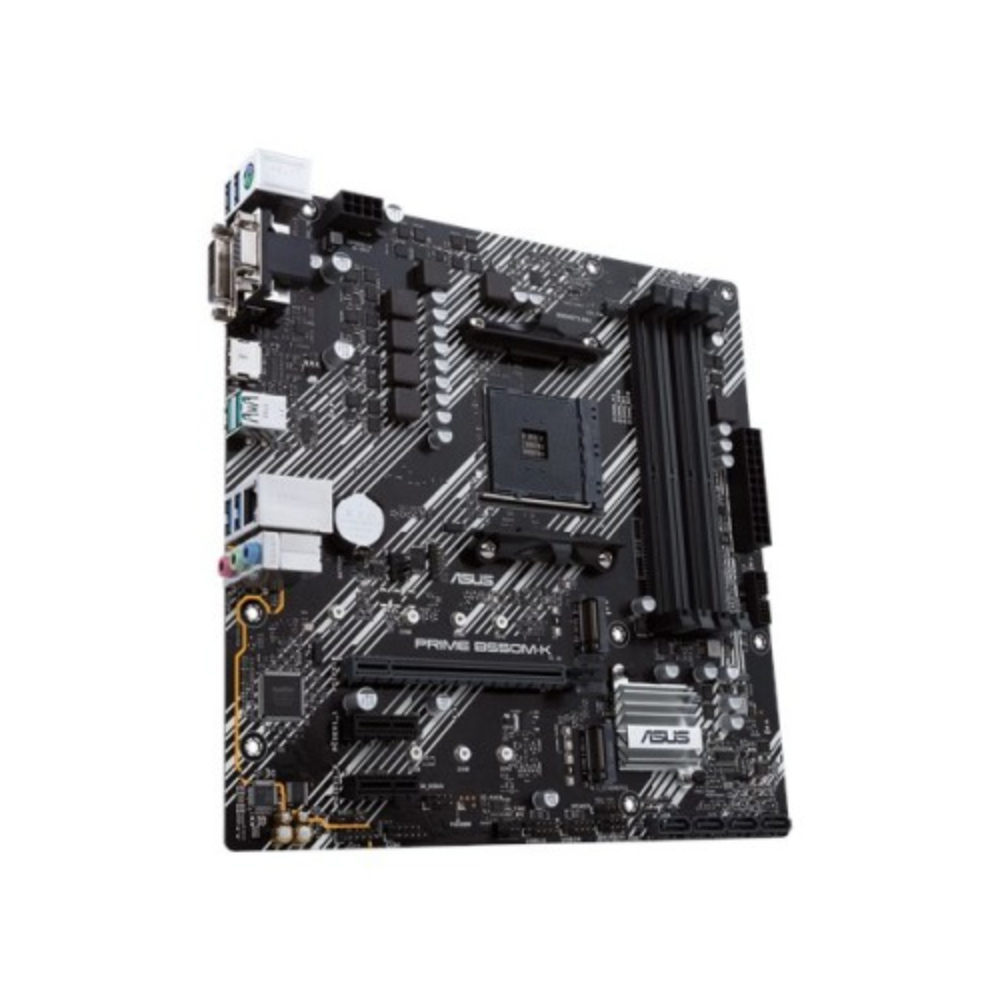

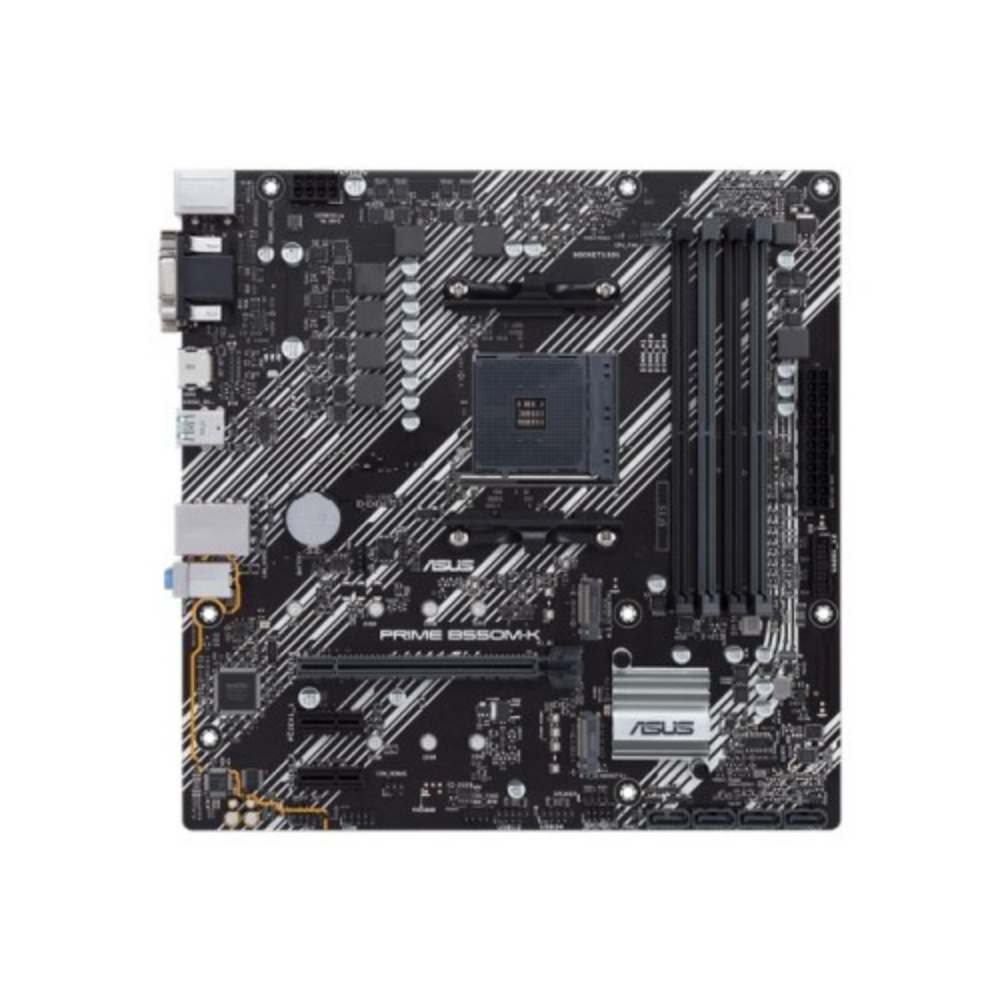

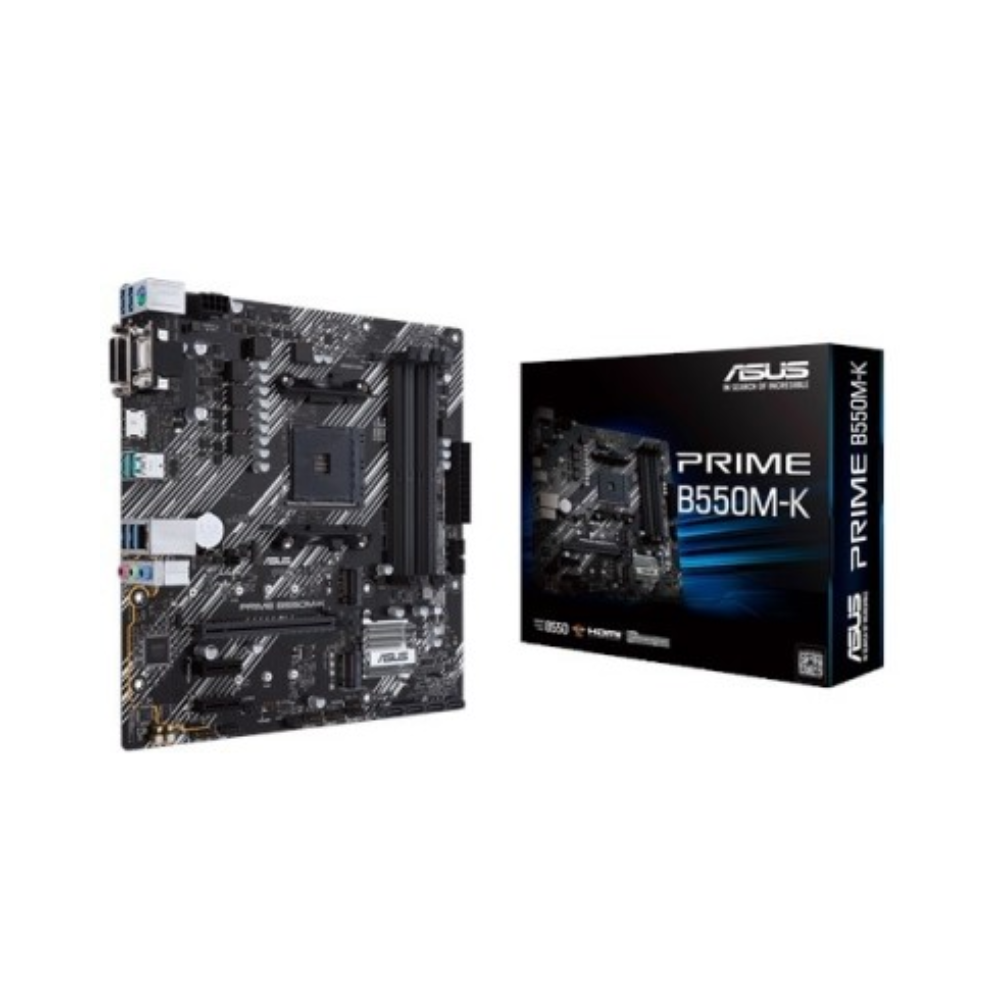

ASUS PRIME B550M-K AMD B550 Enchufe AM4 Micro ATX
Brochure ASUS 90MB14V0-M0AAY0 (pdf)-pdf
